Ready Meal X-Ray Inspection for Safer, Complete Packs
Ready meal X-ray inspection examines sealed trays, pouches, cartons and other finished packs for foreign contaminants and detectable quality problems. It is particularly useful for complex meals because ingredients, compartments and packaging materials can make visual inspection or metal detection alone insufficient.
RaymanTech provides ready meal inspection solutions that combine X-ray imaging with application-specific software. The goal is not to apply one universal setting to every meal. Each recipe and pack format should be tested so the inspection program matches the product, target contaminant and production line.
Key point: A ready meal can contain meat, vegetables, sauce, rice or pasta in one pack. These components create an uneven X-ray image, so practical performance depends on recipe consistency, tray geometry, product thickness and contaminant location.
What Ready Meal X-Ray Inspection Can Check

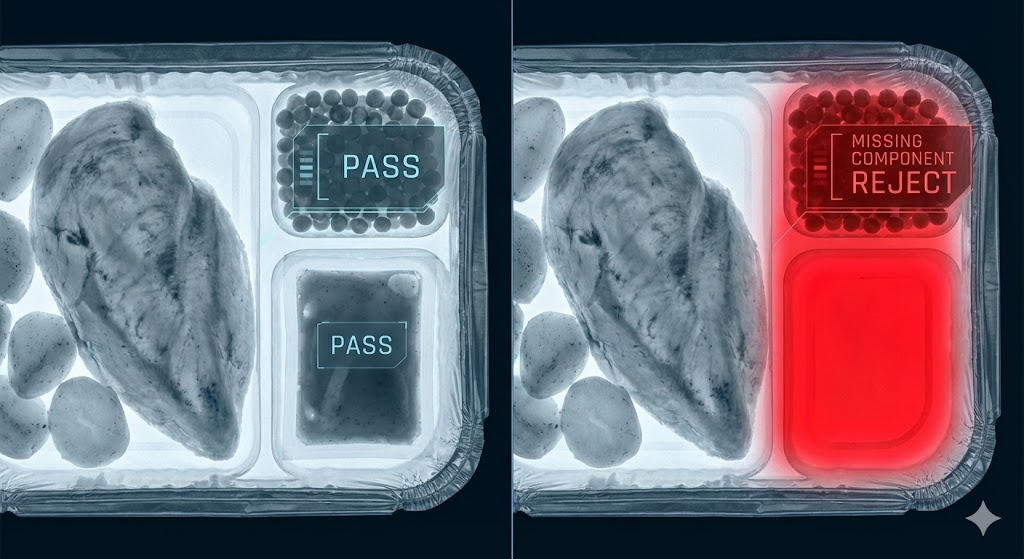

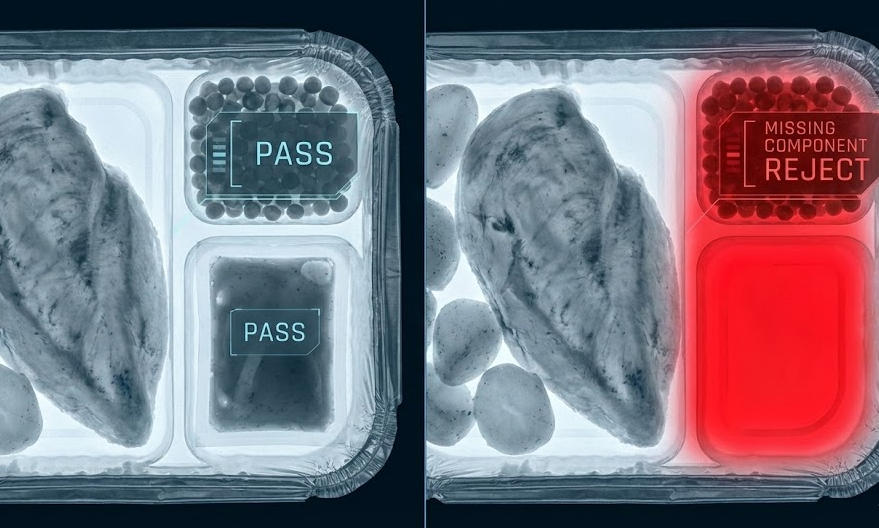

The inspection targets depend on the equipment and product setup. A validated system may support both contaminant detection and selected quality checks in one pass.
How the Inspection Process Works
A conveyor carries each pack through the shielded inspection chamber. The X-ray generator sends energy through the meal and package, while a detector records the transmitted energy. Denser or thicker areas absorb more energy and appear differently in the image.
Product setup: The operator selects or creates the inspection program for the recipe and packaging format.
Image capture: The detector produces an image based on differences in X-ray absorption.
Image analysis: Software evaluates the image for configured contaminants or quality conditions.
Reject and record: A reject device removes nonconforming packs, and the system can record the event for production review.

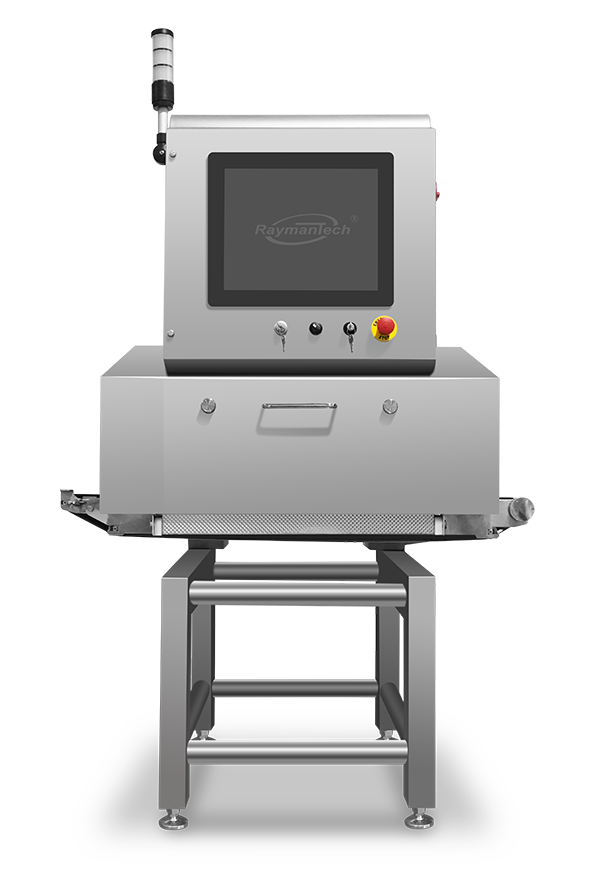

For a broader view of available configurations, see RaymanTech food X-ray inspection systems.
Ready Meal Types and Inspection Priorities
X-Ray Inspection vs. Metal Detection
Metal detectors and X-ray systems respond to different physical properties. A metal detector is designed for metallic contaminants. An X-ray system evaluates absorption differences, so it can find metal plus selected non-metal contaminants. It can also inspect many products in aluminum foil or metallized film.
This does not make X-ray the correct answer for every hazard. Low-density materials may not create enough contrast, and a contaminant hidden in a dense or highly variable product region can be difficult to identify. A line assessment should compare the likely hazards, package material and required sensitivity before selecting the control.
For other finished-pack considerations, read the guide to X-ray inspection for packaged food products.
How to Evaluate a System for Your Line
Define the hazards: Identify likely contaminants and where they may enter the process.
Use representative samples: Test actual recipes, trays, films, lids and product temperatures.
Test difficult locations: Place controlled test pieces in dense components, compartment edges and other challenging positions.
Check rejection performance: Confirm that the reject device removes the correct pack and that rejected product is contained.
Validate every major product group: Do not assume settings for one recipe will perform the same way on another.
Practical next step: Send representative packs and your target contaminants for an application test. The result can help define the inspection position, imaging configuration and reject method before installation.
Ready Meal X-Ray Inspection FAQ
What can ready meal X-ray inspection detect?

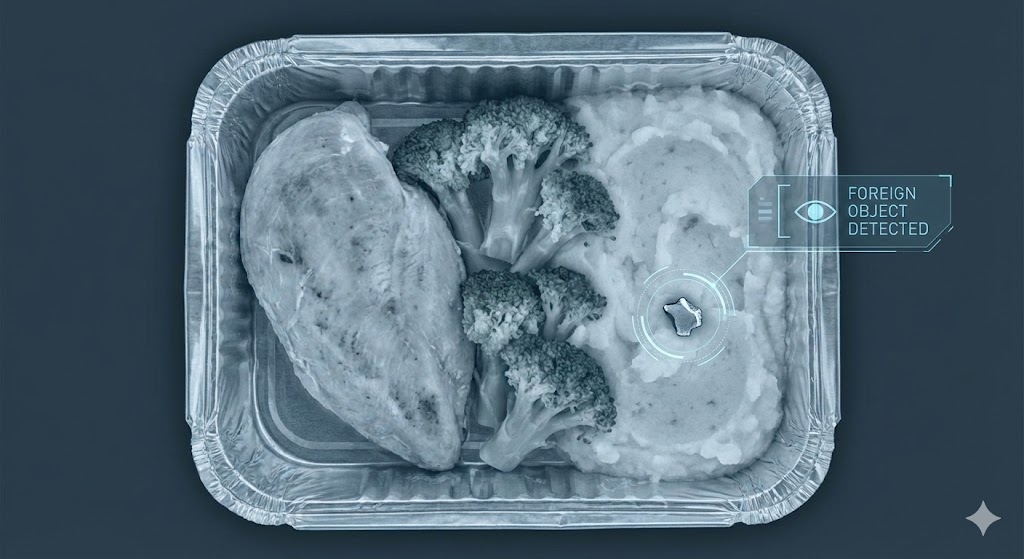

It can identify metal and selected non-metal contaminants such as glass, stone, calcified bone and some dense plastics when they create enough contrast. Performance depends on the meal, package, target and system setup.
Can X-ray inspect ready meals in foil trays?
Yes, X-ray can inspect many aluminum foil and metallized packs because it evaluates absorption rather than an electromagnetic field. The complete product and package should still be tested.
Can one system inspect different ready meal recipes?
A system can store settings for multiple products, but each recipe and format should be validated separately because ingredient distribution, thickness and tray geometry change the image.
Where should the system be installed?
Many producers inspect after filling and sealing to evaluate the finished pack. The correct position depends on contamination risks, packaging, reject handling and required checks.
Test Your Ready Meal Application
Discuss your recipes, packaging formats, line speed and inspection targets with RaymanTech.
