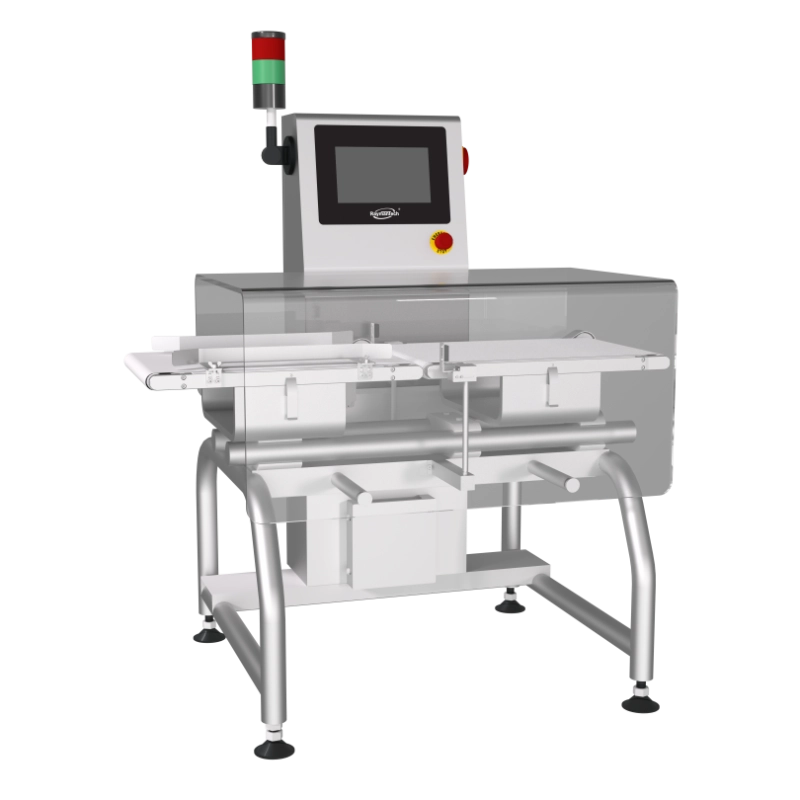

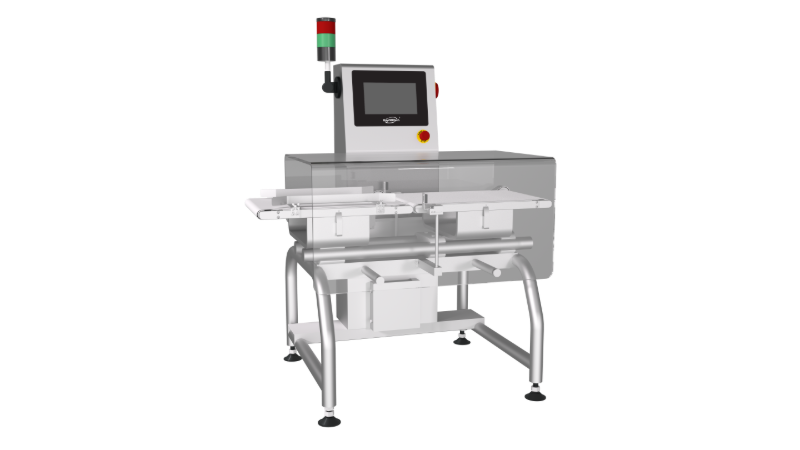

Standard Checkweigher
Check product weight on the production line and reject packages outside your specified weight limits. The RaymanTech Standard Checkweigher combines dynamic weighing, automatic zero tracking, and flexible rejection options for packaged food, pharmaceuticals, and consumer goods.
Automatic setup, a 10-inch touchscreen, and production reporting simplify daily operation and weight monitoring.
brief introduction
-
Features
• Dynamic weighing with automatic zero tracking
• Automatic learning to adjust weighing parameters
• 10-inch touchscreen and up to 999 product recipes
• Password protection for product settings
-
Features
• Production statistics, report generation, and data export
• Multiple rejector configurations
• 304 stainless steel and food-grade conveyor belts
• IP54 standard; IP65 optional
Advantages
-
Stable Weighing
Dynamic filtering and automatic zero tracking support consistent weight measurements during production. -
Easy Setup
Automatic learning and saved product recipes simplify setup and repeat product changeovers. -
Flexible Rejection
Choose a rejector suited to your package format, product weight, and production requirements. -
Easy Cleaning
Food-grade belts and a stainless steel structure simplify cleaning and routine maintenance. -
Production Reporting
Weight statistics, report generation, and data export support production monitoring and recordkeeping. -
Line Integration
USB, Ethernet, and programmable I/O support connectivity with other production equipment and systems.
parameter
| Industries | Food & Beverage |
| Packaging Type | Various packaging types incl. bags, bottles, cartons, trays, cans, cardboards, etc |
| Max Product Width | 390 mm |
| Max Product Length | 500 mm |
| Weighing Range | 10 g-6,000 g |
| Weighing Accuracy | ≥±0.2g |
| Max Conveyor Speed | 70m/min |
| IP Rating | IP54 standard; IP65 optional |
Feel Free To Ask Us Anything,We Will Respond In 24 Hours.
Industry
.png)
Dried Fruits
Color and shape sorting
Defect detection
Damaged or deformed product rejection
Confectionery
Overlapping and sticky candy inspection
Product missing detection
Tiny contaminant detection
FAQ
-
Which industries can use this checkweigher?
The system supports online weight inspection in food processing, pharmaceuticals, and consumer goods. It handles bags, bottles, boxes, and small pouches within the selected configuration’s weight and size limits.
-
What weight range and throughput are available?
The 220 mm belt configuration handles 10-2,000 g at up to 200 packs/min. The 300, 350, and 400 mm configurations handle 20-6,000 g, with maximum rates of 150, 120, and 100 packs/min, respectively. Actual throughput depends on the product and operating conditions.
-
What weighing accuracy can I expect?
Accuracy depends on the product, line speed, and operating environment. Scale intervals are 0.1 g or 0.2 g, depending on configuration; these are display increments, not accuracy guarantees. Share your product and tolerance requirements to confirm achievable performance.
-
How are products outside the weight limits removed?
Available rejector configurations include air blast, pusher, drop-down, blade, and flipper mechanisms. Select the rejection method according to package format, product weight, and line requirements.
-
Can operators switch between different products?
Yes. Automatic learning helps set weighing parameters, and the system stores up to 999 product recipes. A 10-inch touchscreen simplifies selection, while password protection restricts unauthorized changes.
-
Does the system support reporting and connectivity?
Yes. It supports production statistics, report generation, and data export, with USB, Ethernet, and programmable I/O. Confirm the required interfaces and data exchange format for your line.
-
Is the checkweigher suitable for food production environments?
The system uses 304 stainless steel and food-grade conveyor belts with a design that supports cleaning. IP54 is standard, and IP65 is optional. Choose the protection level for your operating and cleaning conditions.
