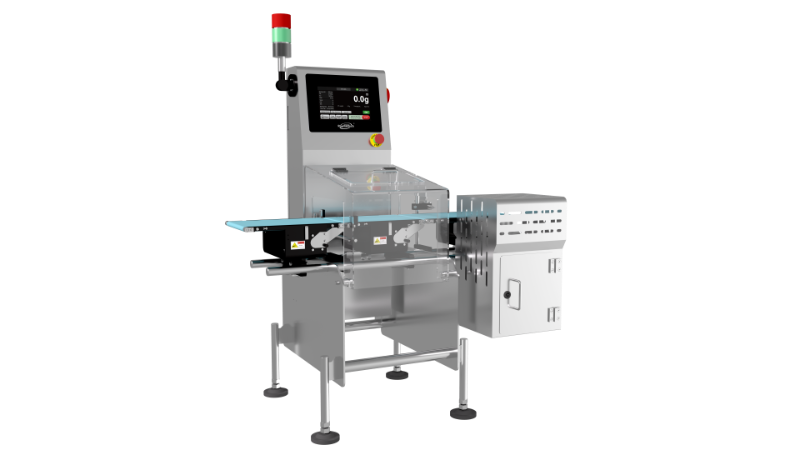

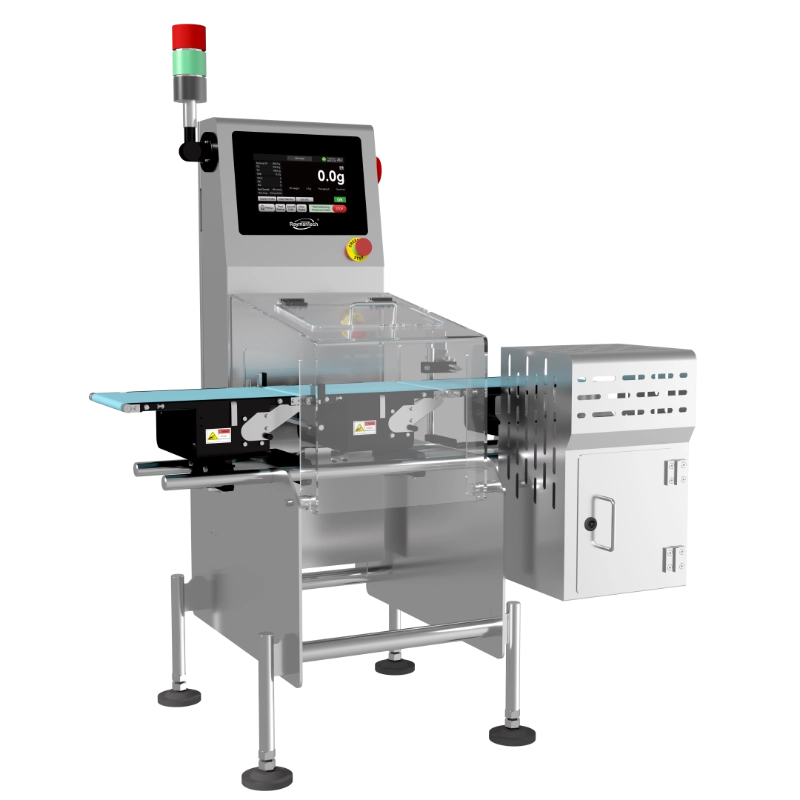

High-Speed Checkweigher
Check product weight on fast-moving packaging lines. The RaymanTech High-Speed Checkweigher combines precision sensors, dynamic filtering, and automatic zero tracking for online weight inspection of packaged food, pharmaceuticals, and consumer goods.
Conveyor speeds up to 120 m/min, with weighing configurations for products from 2 g to 1,200 g. Add an optional rejector to remove packages outside your specified weight limits.
brief introduction
-
Features
• Conveyor speeds up to 120 m/min, depending on the application
• Three weighing configurations with specified 3σ accuracy
• Automatic learning to adjust weighing parameters
• 10-inch touchscreen and up to 999 product recipes
-
Features
• Password protection for product settings
• Weight statistics, report generation, and data export
• Food-grade conveyor belts; IP54 or IP65 configurations
• Optional rejector
Advantages
-
Fast Inspection
Conveyor speeds up to 120 m/min support weight inspection on fast-moving packaging lines. -
Stable Weighing
Precision sensors, dynamic filtering, and automatic zero tracking support consistent measurements during high-speed operation. -
Easy Setup
Automatic learning and up to 999 saved recipes simplify setup and repeat product changeovers. -
Easy Cleaning
Food-grade conveyor belts and an accessible platform design simplify cleaning and routine maintenance. -
Production Reporting
Weight statistics, report generation, and data export help teams monitor production and maintain records. -
Line Integration
USB, Ethernet, programmable I/O, and optional rejection support integration with your existing production line.
parameter
| Industries | Food & Beverage & Pharmaceuticals |
| Packaging Type | Various packaging types incl. bags, bottles, cartons, trays, cans, cardboards, etc |
| Max Product Width | 210 mm |
| Max Product Length | 300 mm |
| Weighing Range | 2 g-1,200 g |
| Weighing Accuracy | ≥±0.05g |
| Max Conveyor Speed | 120m/min |
| IP Rating | IP54 standard; IP65 optional |
Feel Free To Ask Us Anything,We Will Respond In 24 Hours.
Industry
.png)
Dried Fruits
Color and shape sorting
Defect detection
Damaged or deformed product rejection
Confectionery
Overlapping and sticky candy inspection
Product missing detection
Tiny contaminant detection
FAQ
-
Which industries can use this checkweigher?
The system supports food processing, pharmaceuticals, and consumer goods. Suitable formats include bags, bottles, boxes, and small pouches, subject to product handling and weighing requirements.
-
How does it differ from the standard checkweigher?
The high-speed model offers conveyor speeds up to 120 m/min and configurations for products from 2 g to 1,200 g. The standard model offers speeds up to 70 m/min and configurations up to 6,000 g. Choose according to product weight, dimensions, and required performance.
-
What accuracy can I expect at my production speed?
Specified accuracy is ±0.05 g, ±0.1 g, or ±0.2 g at 3σ, depending on configuration. These test-sample values are not guarantees for every product at maximum speed. Share your product and target speed to confirm achievable accuracy.
-
How many packages can it inspect per minute?
The maximum conveyor speed is 120 m/min. Packages per minute depend on product length, spacing, weighing requirements, and rejection setup. Confirm throughput for your actual package and line conditions.
-
Can it remove underweight or overweight products?
An optional rejector can remove products outside the specified weight limits. Confirm the rejection method and operating speed for your package format during system configuration.
-
Can operators quickly switch between products?
Automatic learning helps adjust weighing parameters, while up to 999 stored product recipes simplify repeat setups. A 10-inch touchscreen supports operation, and password protection restricts unauthorized changes.
-
Does it support production reporting and line connectivity?
Yes. The system supports weight statistics, report generation, and data export, with USB, Ethernet, and programmable I/O. Confirm the required interfaces and data exchange format for your line.
-
Is it suitable for food production and cleaning?
Food-grade conveyor belts and a platform designed for easy cleaning support food applications. IP54 and IP65 configurations are available; choose the appropriate protection level for your environment and cleaning procedures.
