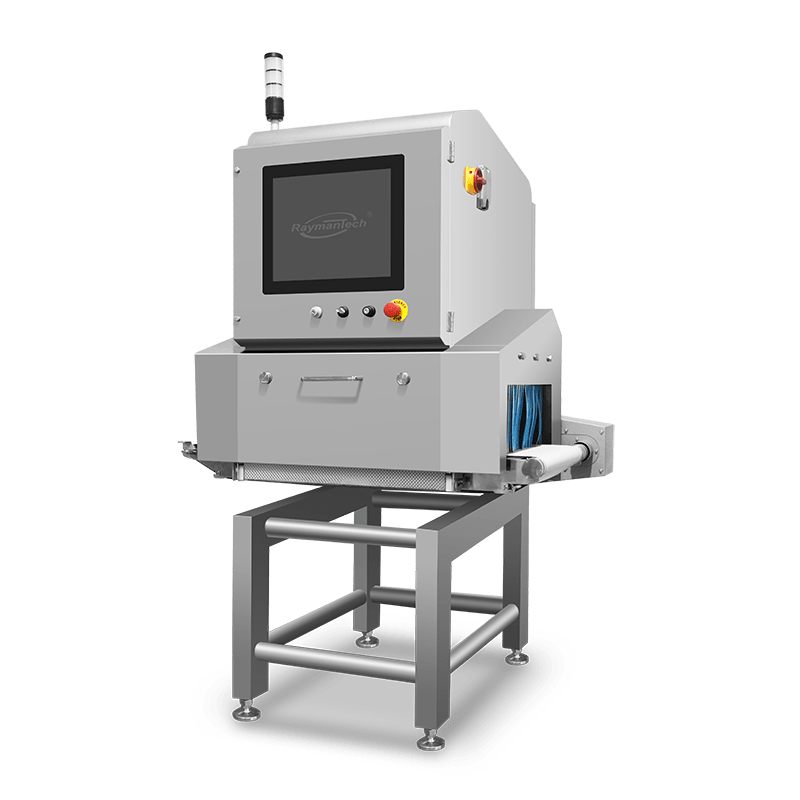

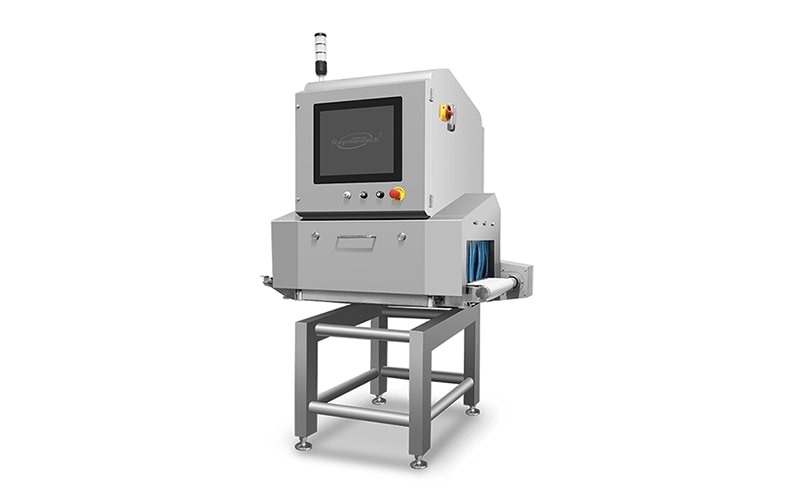

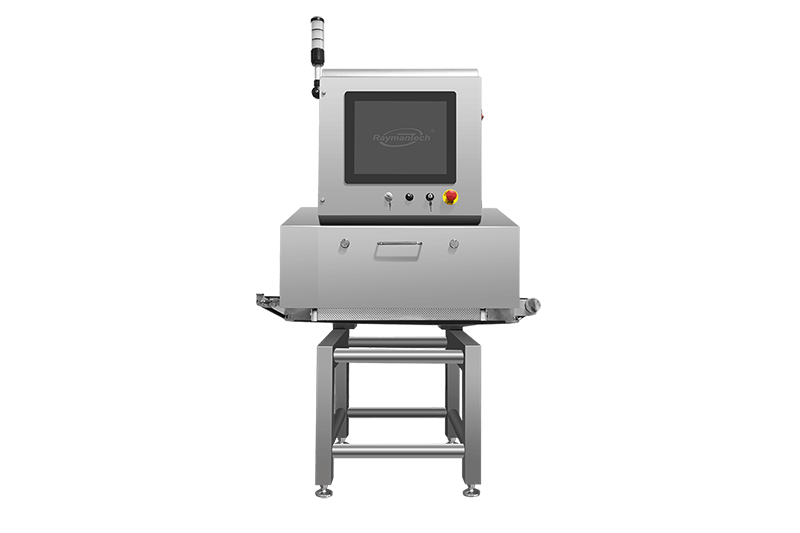

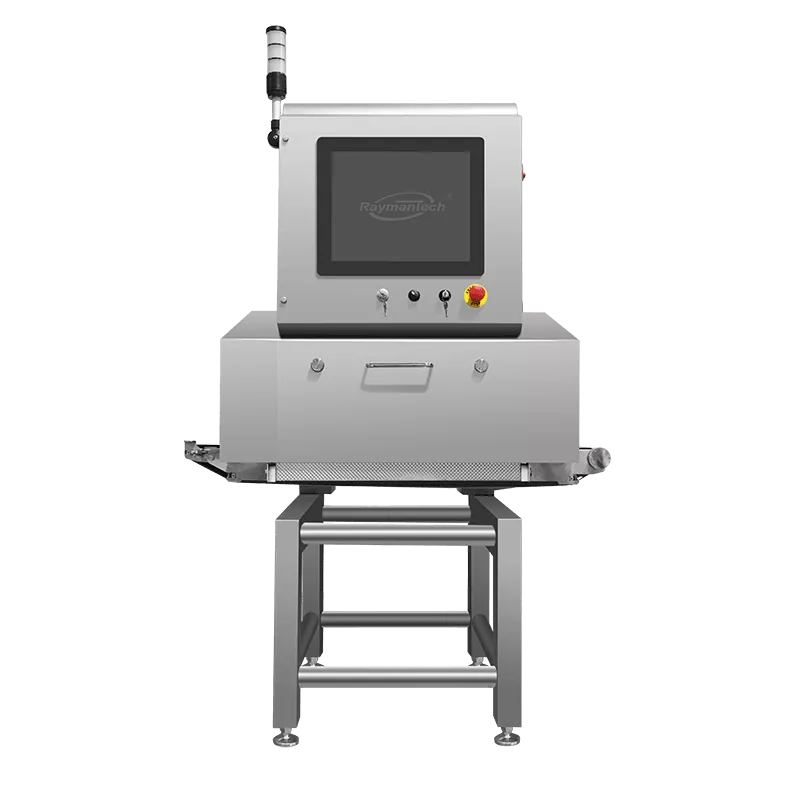

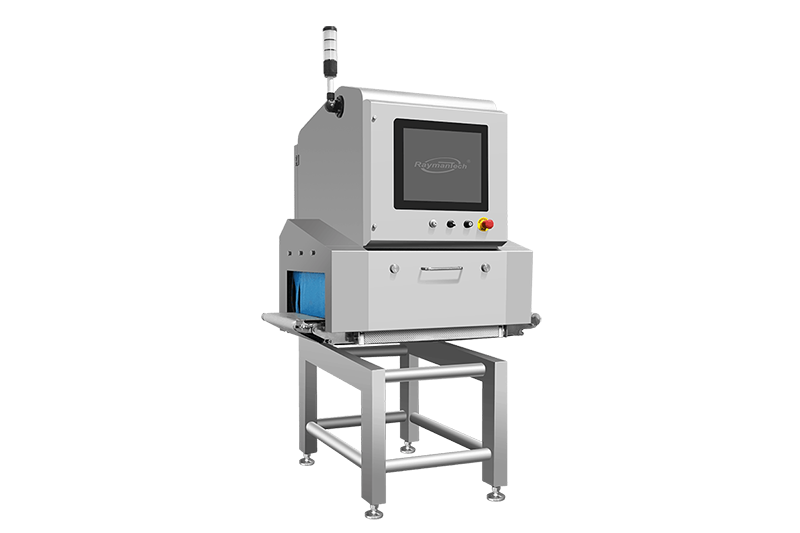

AI Standard Food X-Ray Inspection System
UHD X-Ray detector, AI large model, all food industries
Model: RXI-2416 / 4016 / 4030 / 5030 / 6030 / 8040
brief introduction
-
Features
· AI-powered high resolution detector
· IP67 for Inspection tunnel
· IP69K full body optional
· Defect and missing inspection
· Virtual weighing, counting function and other applications
· Data transfer and remote support
-
Application
High-end solution for small and tiny contaminant detection with AI-powered detector. Includes full product integrity checks.
IP69K option available for harsh environments.
Advantages
-
AI-Powered Detection
Combines AI large model and high resolution X-ray detector. -
Tiny Contaminant Detection
Identifies small and low-density contaminants across food sectors. -
Defect & Missing Check
Detects product defects, missing items, and ensures integrity. -
Virtual Weighing
Provides weight estimation and item counting. -
Hygienic Design
IP67 for the tunnel; IP69K option for full washdown. -
Data Connectivity
Supports data transfer and remote troubleshooting.
parameter
| Inspection Width | 240-800mm |
| Inspection Height | 160-400mm |
| Conveyor Speed | 10-90m/min |
| X-ray Leakage | < 1uSv/h |
| IP Rate | IP67 |
| Cooling Method | Air Conditioned Cooling |
| Working Temperature | 0-40°C |
| Working Humidity | 30-90% |
| Power Supply | 220V, AC, 50/60Hz |
Feel free to ask us anything, we will respond in 24 hours.
Industry
.png)
Dried Fruits
Color and shape sorting
Defect detection
Damaged or deformed product rejection
Confectionery
Overlapping and sticky candy inspection
Product missing detection
Tiny contaminant detection
FAQ
-
What contaminants can Raymantech X-Ray systems detect?
Raymantech’s X-Ray inspection systems detect metal, glass, ceramic, stone, hard plastic, bone, dense rubber, and other dense impurities. They inspect based on material density rather than conductivity, detecting non-metallic items that metal detectors miss.
-
Can the X-Ray machine inspect for things beyond contaminants (e.g., integrity, composition)?
Yes. Beyond foreign contaminant detection, Raymantech’s systems also perform product-integrity checks—such as sealing, missing components, fill-level, weight estimation—and fat-content analysis for monitoring composition in meat processing.
-
What makes Raymantech’s X-Ray equipment unique?
Raymantech’s whole-chain inspection capability from raw to packaged products, and AI-powered image processing for high accuracy and connectivity.
-
Which industries are served by Raymantech X-Ray systems?
Industries include meat, seafood, poultry, dairy, nuts, bakery, snacks, coffee, grains, canned/bottled food, pet food, frozen vegetables/fruits, convenience food, baby food and etc. Also suitable for pharmaceutical applications.
-
How does fat-content analysis work in these systems?
The fat-content analyzer uses X-Ray imaging with calibrated algorithms to estimate fat percentage or lean ratio, helping with nutritional labeling, cost control, and process inspection.
-
Are the systems safe and hygienic for food environments?
Yes. They meet CE radiation standards (<1 μSv/h) and feature stainless-steel, hygienic designs with IP65/67/69K options for wash-down and cold environments.
-
How do I select the right model for my line?
Key factors include product type, packaging, throughput, contaminant risks, and optional features like weight or fat-content analysis. Raymantech offers sample testing to validate performance before purchase.
-
Does the system support AI-based inspection?
Raymantech provides remote service, data logging, spare parts, and validation services. Regular cleaning, calibration, and software updates ensure consistent accuracy and reliability.
-
Can X-Ray machines inspect large or irregularly shaped packages?
Yes. Raymantech offers systems with various tunnel sizes and large-window designs to accommodate bulk or large-pack products.
-
What about maintenance and support?
The system features hygienic stainless-steel design, quick disassembly, and auto-diagnostic functions to simplify cleaning and maintenance.
