Post-roast AI optical sorting for quaker beans, roast-color variation, and foreign materials in whole-bean coffee production

Roasted Coffee Inspection at a Glance

Typical Use Case

Post-roast optical sorting is typically installed after roasting and before packaging to separate quaker beans, roast-color variations, damaged beans, and foreign materials.

For premium whole-bean coffee products, this final inspection checkpoint helps maintain consistent product presentation and stable outgoing quality across production batches.

Why Post-Roast Inspection Matters for Coffee Production

Green coffee quality has a direct influence on the final coffee profile. Before roasting, coffee producers and exporters typically apply different quality control methods to remove defective beans and foreign materials.

However, the roasting process changes both the appearance and structure of coffee beans, creating new quality variations that are not always visible during raw material inspection.

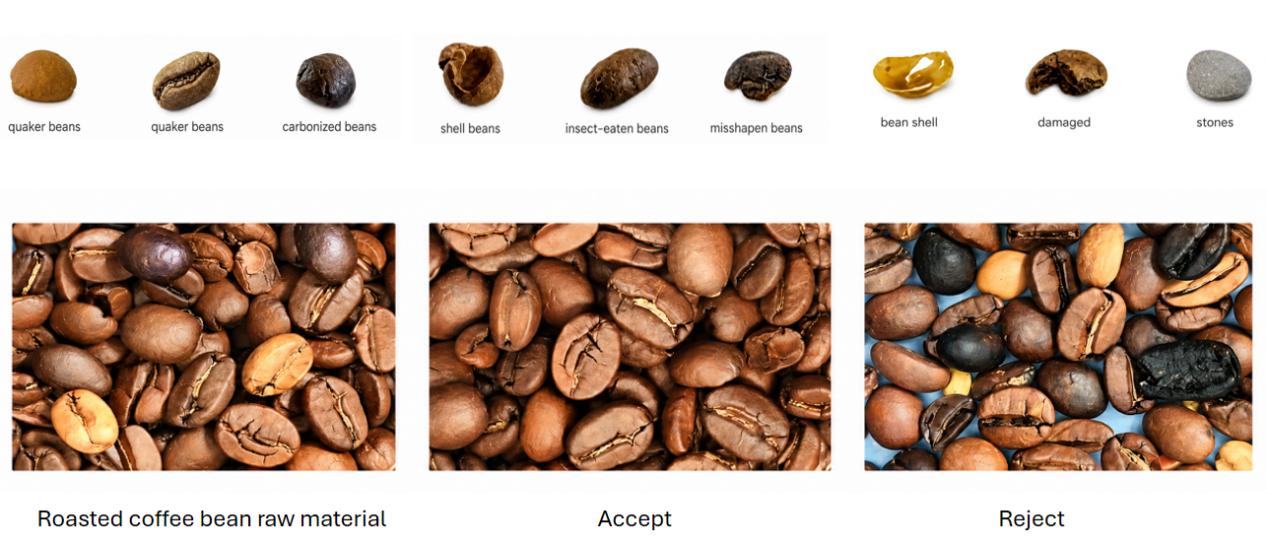

Typical post-roast quality concerns include:

• Quaker beans with lighter-than-normal appearance

• Uneven roast color within the same batch

• Over-roasted or carbonized beans

• Broken or damaged beans

• Foreign materials and non-coffee particles

For whole-bean coffee products, appearance is an important part of customer expectations and brand presentation.

Post-roast sorting serves as a final verification checkpoint before packaging, helping manufacturers separate abnormal beans while preserving acceptable products.

Quaker Beans: A Key Challenge in Specialty Coffee

Quaker beans are among the most recognized quality challenges in roasted coffee production.

Quaker beans are underdeveloped coffee beans that lack sufficient sugar development to complete normal browning reactions during roasting, resulting in a noticeably lighter appearance than properly roasted beans.

Although green coffee sorting can significantly reduce immature and defective beans before roasting, some quaker beans may still remain because certain quality differences become apparent only after roasting.

For specialty coffee roasters, quaker beans are a concern because they can affect both visual uniformity and cup quality. They may contribute undesirable sensory characteristics such as:

• Grassy or underdeveloped notes

• Astringency

• Reduced sweetness

• Less balanced flavor expression

For this reason, quaker detection has become an important part of post-roast quality control.

Roast Color Variations and Uneven Roasting Results

Roasting transforms the physical and chemical characteristics of coffee beans. Differences in bean properties, roasting conditions, or heat distribution can result in uneven color development within the same batch.

Common roast-related variations include:

• Light-colored beans caused by insufficient roast development

• Over-roasted or excessively dark beans

• Carbonized beans with abnormal appearance

• Uneven roast color distribution

For whole-bean coffee products, consumers and retailers generally expect a uniform appearance across different batches.

Identifying roast-color outliers after roasting helps coffee manufacturers improve the visual consistency of finished products before packaging.

Physical Defects and Foreign Materials

Beyond roast-related appearance differences, roasted coffee may also contain physical defects or unwanted materials that affect product presentation and processing quality.

Common concerns include:

• Broken or chipped beans

• Damaged coffee beans

• Bean fragments

• Stones or other non-coffee materials

Roasting reduces moisture content and makes coffee beans more fragile during handling. As a result, conveying and sorting conditions become important factors in protecting acceptable beans throughout the production process.

The challenge for coffee processors is not only separating unwanted materials and defective beans, but also achieving accurate sorting while minimizing unnecessary product loss.

RaymanTech Roasted Coffee Bean Sorting Solution

After roasting, coffee producers need a reliable way to control visible defects, maintain product presentation, and protect finished product quality before packaging.

RaymanTech's optical sorting solutions for roasted coffee combine multi-view imaging, AI recognition, optional infrared inspection, gentle product handling, and hygienic design to address key post-roast quality challenges.

The system analyzes each bean using multiple characteristics, including:

• Color

• Shape

• Surface appearance

• Material-based spectral responses

Together, these technologies create a more reliable and repeatable sorting process for whole-bean coffee applications.

Multi-View Imaging for Better Coverage of Irregular Beans

Coffee beans naturally have curved surfaces and irregular shapes. A single viewing angle may not capture all visible characteristics of an individual bean, particularly when defects are located on partially hidden surfaces.

RaymanTech's multi-view imaging technology captures coffee beans from multiple directions, reducing blind spots caused by bean curvature and random orientation.

By providing more complete image data, the system gives AI recognition a stronger foundation for accurate defect classification.

AI Recognition for Subtle Appearance Differences

Roasted coffee defects are not always defined by simple color differences. Variations between beans can be subtle, especially across different roast profiles and natural product variations.

Using the complete image data captured through multi-view imaging, RaymanTech's AI recognition technology analyzes complex appearance patterns to distinguish acceptable beans from abnormal products.

Typical applications include:

• Separating light-colored quaker beans

• Detecting abnormal roast colors

• Identifying damaged or inconsistent beans

• Applying customer-defined sorting standards

Coffee producers can adjust inspection criteria according to product characteristics, roast style, and quality requirements.

Infrared Inspection for Material-Based Differences

Some foreign materials may appear similar to coffee beans under visible light but have different material characteristics.

RaymanTech's optional infrared inspection technology adds material-based information beyond visible appearance, helping identify certain foreign materials that may be difficult to distinguish through traditional visual inspection alone.

When combined with visible imaging, infrared inspection can assist in detecting materials such as:

• Stones

• Other non-coffee particles

This additional inspection capability provides another level of protection against foreign material contamination.

Designed for Coffee Processing Requirements

Gentle Product Handling for Roasted Coffee Applications

Roasted coffee beans become more fragile after roasting because moisture content is reduced and their internal structure changes.

During sorting and conveying, excessive mechanical impact may increase breakage and reduce the value of whole-bean products.

RaymanTech's sorting systems are designed with gentle product handling in mind to help protect acceptable beans throughout the inspection process.

Key benefits include:

• Reduced unnecessary bean breakage

• Better preservation of whole-bean appearance

• Protection of finished product value

For premium whole-bean coffee products, preserving acceptable beans is just as important as removing defective ones.

Hygienic Design for Coffee Processing Environments

Coffee roasting and packaging facilities require equipment that supports food hygiene standards, reliable operation, and efficient maintenance.

RaymanTech's optical sorting systems feature a hygienic, IP66-rated, washdown-ready design suitable for modern food processing environments.

The design supports:

• Easier cleaning and maintenance

• Stable operation during continuous production

• Integration into modern coffee processing lines

This allows manufacturers to strengthen quality control without adding unnecessary complexity to daily operations.

Flexible Solutions for Different Coffee Applications

Inspection priorities vary depending on the coffee product, roast profile, production environment, and defect standards. For example:

• Specialty coffee roasters may prioritize quaker detection and roast appearance control

• Packaged coffee manufacturers may focus on throughput and stable sorting performance

• Different roast profiles may require different sorting criteria

RaymanTech works closely with coffee producers to evaluate product characteristics, defect priorities, and production conditions, developing inspection solutions tailored to each application.

Product sample testing allows manufacturers to evaluate sorting performance under actual production conditions before selecting the most suitable solution.

Building Consistent Quality for Roasted Coffee Brands

For coffee producers, post-roast inspection is more than a defect removal step. It is the final quality checkpoint before products move to packaging and distribution.

By combining multi-view imaging, AI recognition, optional infrared inspection, gentle product handling, and hygienic design, RaymanTech helps coffee producers build a more reliable, repeatable, and efficient post-roast quality control process.

The result is more consistent whole-bean products, reduced reliance on manual inspection, and greater confidence in outgoing product quality.
